Materialien
- Material
- Aluminium posts + between-post VSG Glass
- Pfostenmaße
- Glass panel between aluminium posts
- Recycelbar
- 98%
MODELLAUSWAHL
Beim Glasgelaender mit Pfosten ist entscheidend, wo der Pfosten das Glas traegt: vorne, hinten oder seitlich.
Vergleichen Sie die Modelle dieser Produktgruppe; jede Karte oeffnet die passende Produktseite.
Die finale Auswahl wird ueber Glasaufbau, Montageflaeche, Anker und Projektlasten bestaetigt.

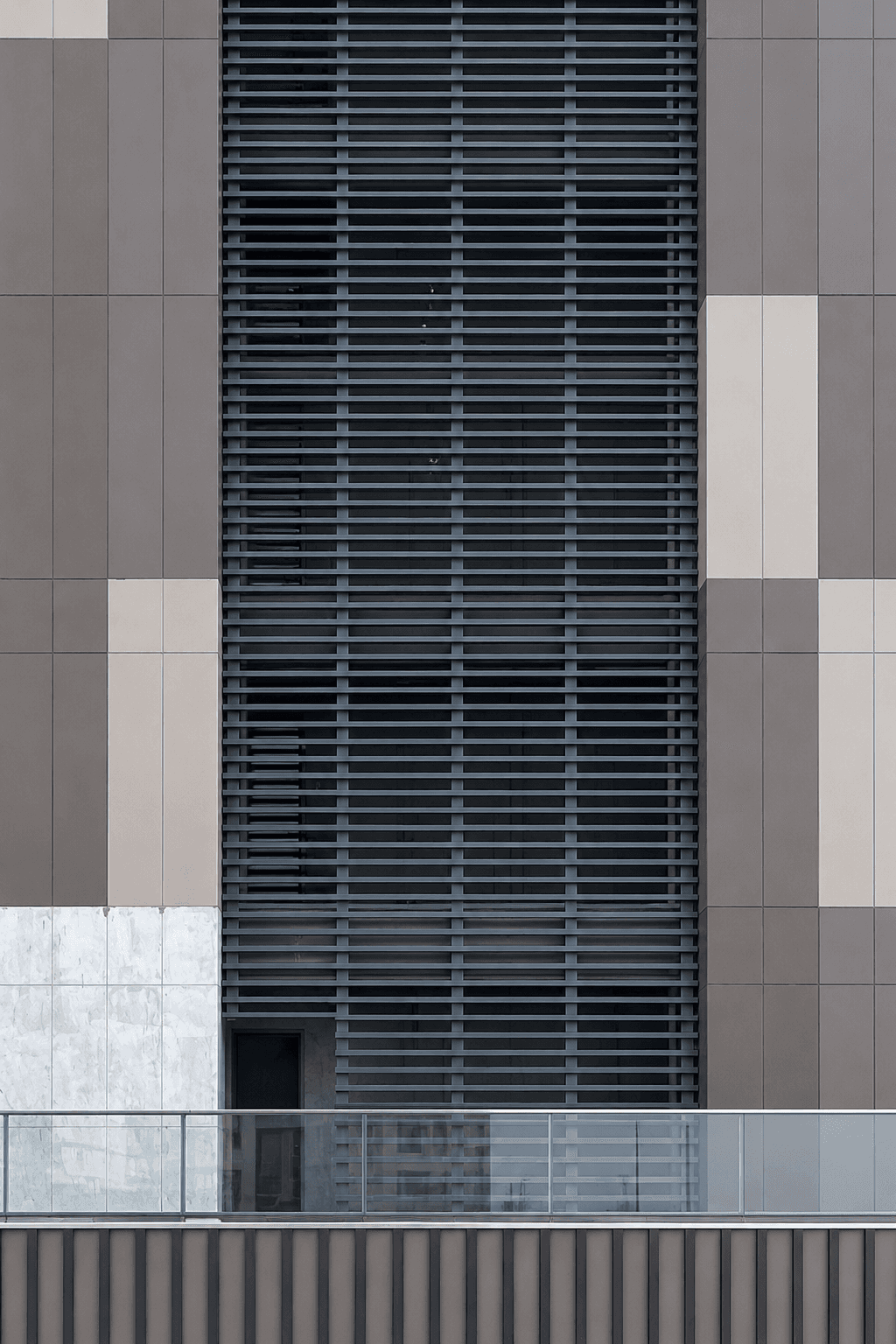

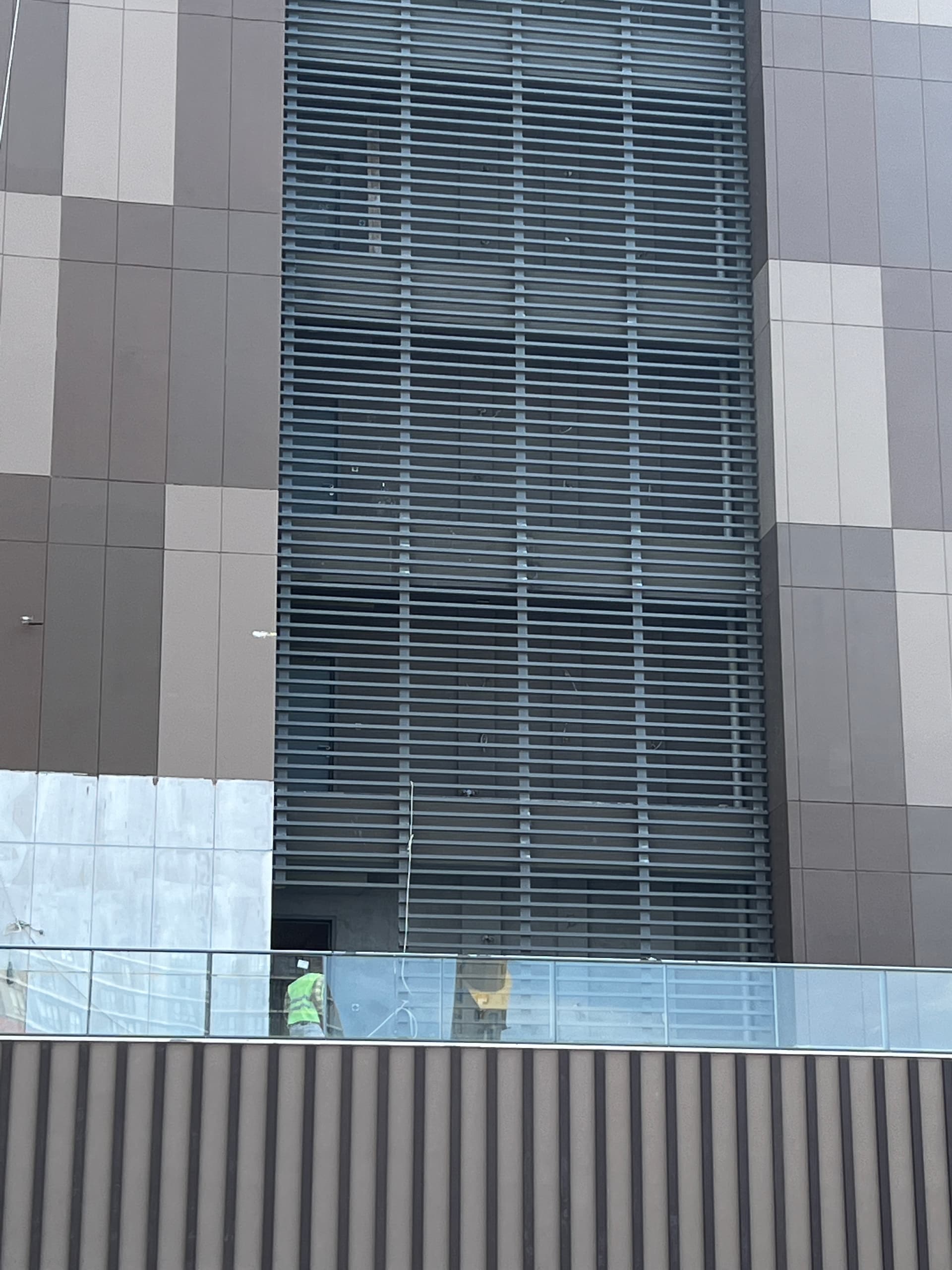

Glaspaneele zwischen Aluminiumpfosten

Ruhigere Glasflaeche von aussen

Klarere Gelaenderlinie mit oberem Handlauf
Glass panels held between aluminium posts
Between-post glass railing carries each glass panel between aluminium posts, giving balconies and stair edges a clear modular rhythm.

TECHNISCHES PROFIL
Pruefen Sie zuerst den Systemcharakter und danach Material, Glas oder Fuellung, obere Montage, Stirn- oder Seitenbefestigung, Anker und Leistungsdaten gemeinsam.
Material
Aluminium posts + between-post VSG Glass
Glasstärke
VSG review route
Montage
Balcony edge / sill review
ALR-GL-VSG66 / ALR-GL-VSG88 / ALR-GL-VSG1010
Code-Route
ALR-GL-VSG66
6+6 mm VSG laminated glass route
Code-Route
ALR-GL-VSG88
8+8 mm VSG laminated glass route
Code-Route
ALR-GL-VSG1010
10+10 mm VSG laminated glass route
ALR-ANC-M12-CHM / ALR-ANC-A4-SS
Code-Route
ALR-ANC-M12-CHM
M12 chemical anchor route
Code-Route
ALR-ANC-A4-SS
A4 stainless anchor / fixing part
Systemcode
ALR-PGB-BP
Code-Route
ALR-PGB-BP
Between-post glass railing
Pfostencodes
ALR-PST-SQ4040 / ALR-PST-RE5025 / ALR-PST-RD50
Code-Route
ALR-PST-SQ4040
40x40 square post
Code-Route
ALR-PST-RE5025
50x25 rectangular post
Code-Route
ALR-PST-RD50
Ø50 round post
Clamp codes
ALR-CLP-SQ / ALR-CLP-RD
Code-Route
ALR-CLP-SQ
Square glass clamp
Code-Route
ALR-CLP-RD
Round glass clamp
Justagecodes
ALR-ADJ-EPDM
Code-Route
ALR-ADJ-EPDM
EPDM gasket and glass bedding
Market terms
Between-post glass railing places each glass panel between aluminium posts. The result is a visible modular rhythm on the facade, useful for residential balconies, stair edges, atrium edges and projects with controlled bay spacing.
Post section, clamp type, glass clearance, handrail need, panel width and centre-to-centre spacing should be reviewed before quotation. The glass build-up is selected from VSG laminated safety glass according to project loads and local approval expectations.
This route works where a fully frameless line is not required but transparency still matters. It creates a middle architectural language between aluminium bar railing and continuous base-channel glass railing.
PRODUKT-ENTSCHEIDUNG
Nutzen Sie dieses Produkt, wenn Maße, Untergrund, Nutzung und technische Anforderungen klar genug für die Angebotsphase sind.
Nutzen Sie dieses Produkt, wenn Maße, Untergrund, Nutzung und technische Anforderungen klar genug für die Angebotsphase sind.
Maße, Untergrund, Wind und Nutzung gemeinsam klären.
Alternativen nach demselben Projektbedarf vergleichen.
Projektpfad fortsetzen
Alternativen nach demselben Projektbedarf vergleichen.
ProjektprüfungMaße, Untergrund, Wind und Nutzung gemeinsam klären.
MarktroutenConnect this product family to country, project-type and buyer-intent landing pages.
ProduktfinderAlternativen nach demselben Projektbedarf vergleichen.
ProjektprüfungMaße, Untergrund, Wind und Nutzung gemeinsam klären.
PRODUKTANTWORTEN
Nutzen Sie diese Hinweise, um das Produkt vor Rechnern, Produktfinder oder Angebotsanfrage mit den Projektdaten abzugleichen.
Projektland, Maße, Menge, Befestigungsfläche, Exposition, Oberfläche und Zubehör- oder Dokumentationsbedarf geben der ersten Anfrage den passenden technischen Umfang.
Smart Quote starten →Vergleichen Sie zuerst nach Einsatzfall, danach nach Bedienung, Tragbedingungen, Oberfläche, Servicezugang und Bedarf an Händler-, Export- oder Engineering-Unterstützung.
Produktfinder nutzen →ALCODEC
Rahmenlos — 100mm Schlanker Sockelschuh
Rahmenloses Glasgeländer — EN 1991-1-1 konform, Panoramaaussicht
Ein Rahmen, Jede Füllung — MARS
Modulares Aluminium-Balkongeländer — Stab-, Glas- oder Lochblechfüllung
35mm Ausladung — WDVS-Kompatibel
Flächenbündiger Französischer Balkon — VSG-Sicherheitsglas, keine Rahmenbohrung

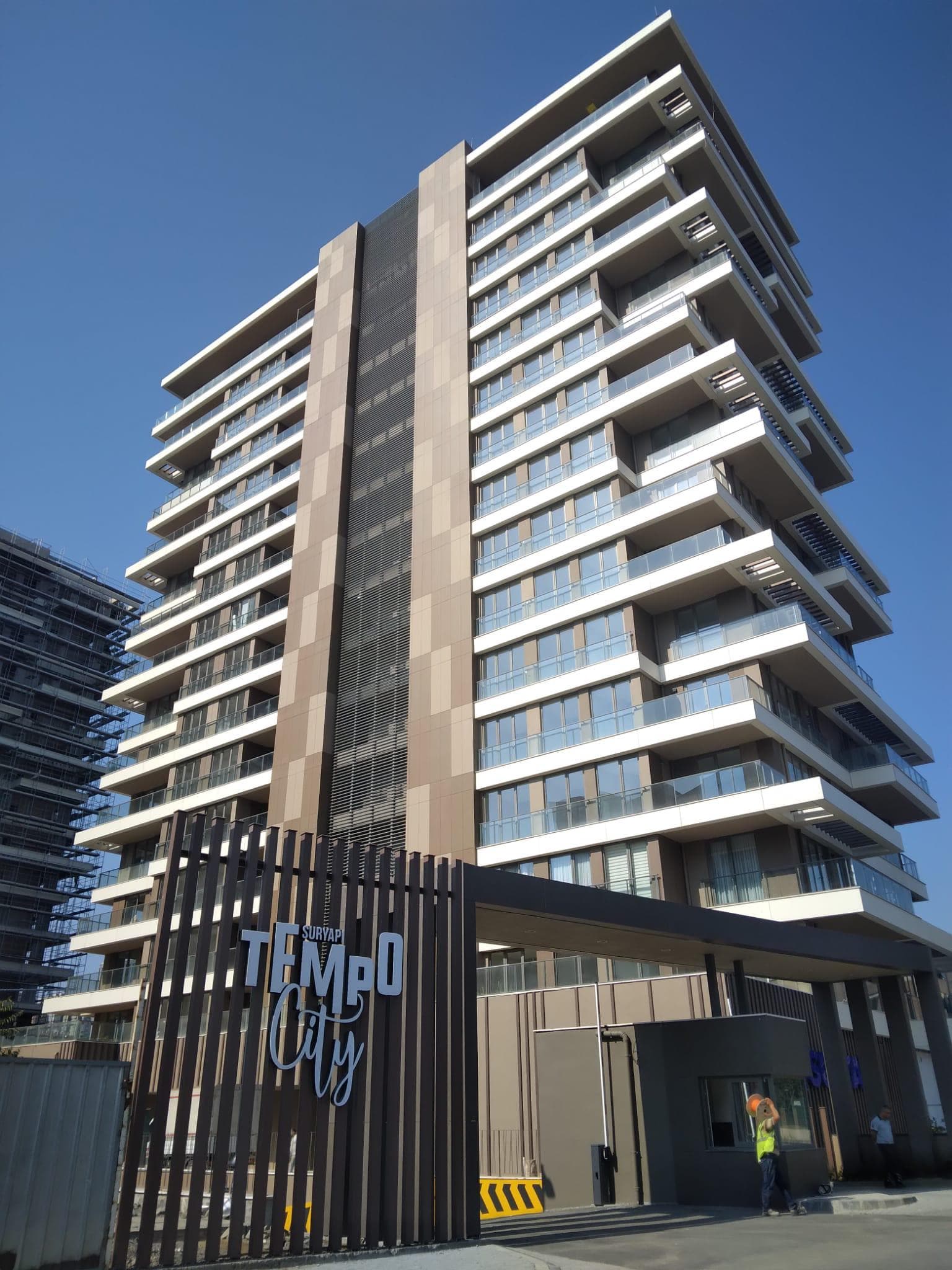

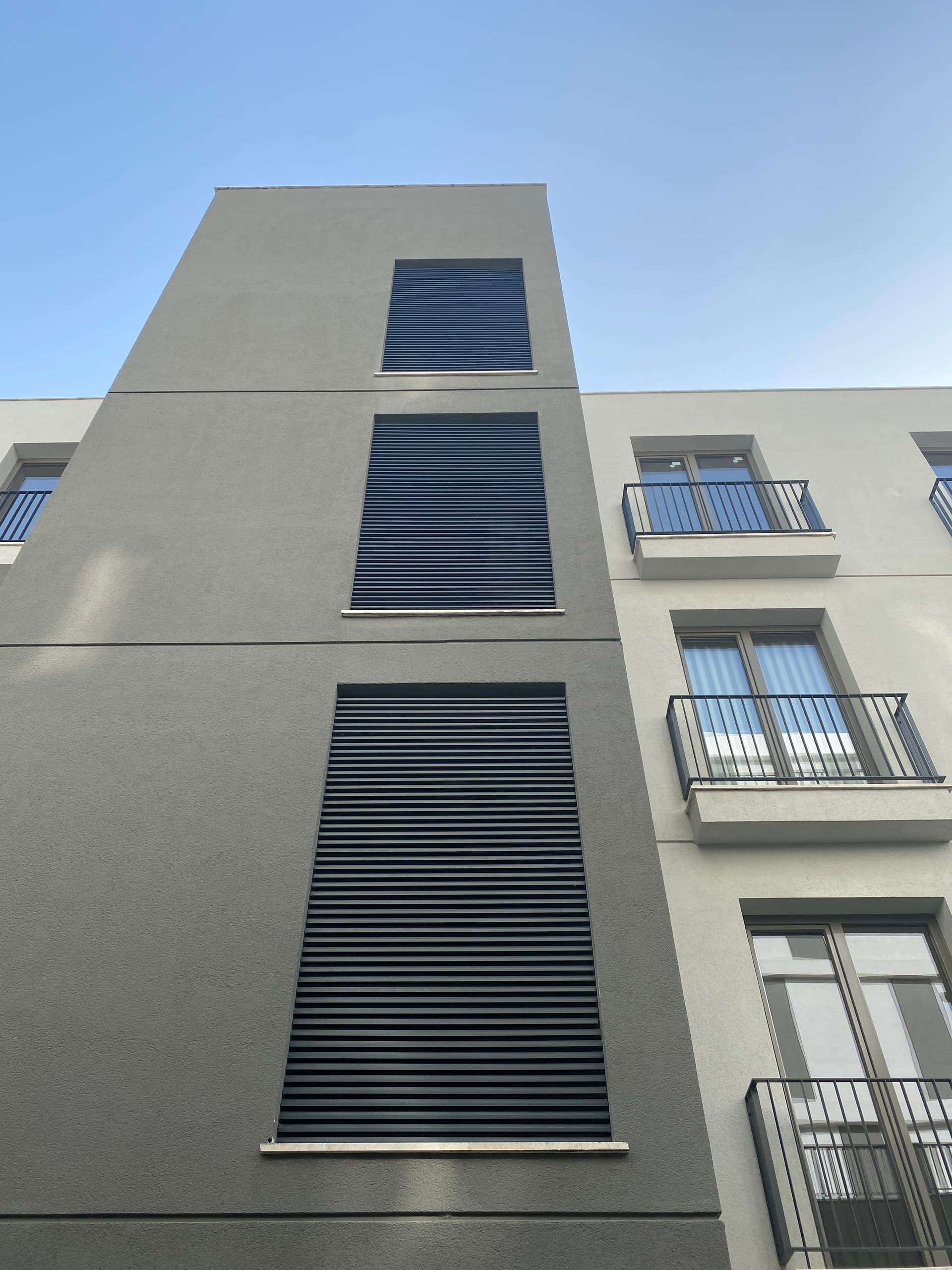

Balcony, service-balcony and facade repetition context from Tempo City Kağıthane

Wohnbalkon-Route mit rückseitigen Pfosten, horizontalen Serviceprofilen und abgestimmter Aluminiumoberfläche.

Für Bereiche, in denen Glas, Pfostenabstand und Lüftungsfreiräume zusammen geplant werden.

Wiederholbare Produktlogik für viele Balkonöffnungen einer Wohnfassade.
Berechnen Sie System, Glasdicke und Normkonformität für Ihr Projekt — kostenlose Voranalyse.
Konfigurieren Sie dieses Produkt online in 3D — Maße, Farbe, Zubehör wählen und sofort Angebot erhalten.
ANWENDUNGEN

Pfostengetragenes Glasgeländer für Apartment- und Fassadenbalkone.

Koordination von Glas, Pfostenraster und horizontalen Serviceprofilen.

Praktische Route für wiederholte Balkonöffnungen in urbanen Wohnfassaden.
FARBEN & OBERFLÄCHEN
RAL 7016
RAL 9005
RAL 9010
RAL 7035
RAL 8014
RAL 9006
RAL 3004
RAL 6005
TIGER Coatings QUALICOAT · 450+ RAL · catalog.visioAir.finishes
Alcodec VisioAir Pfosten-Glasgeländer
Vergleichen Sie die Alcodec Glasgeländer-Systeme
| Spezifikation | Alcodec FS 1500 | Alcodec FS 3000 | Alcodec FS 7000 | Alcodec Square-Spigot Glasgeländer | Alcodec VisioAir Pfosten-Glasgeländer |
|---|---|---|---|---|---|
| Material | Aluminium + VSG Glass | Aluminium + VSG Glass | Aluminium + VSG Glass | Aluminium spigot + VSG Glass | Aluminium posts + VSG Glass |
| System Code | ALR-FS15-BZA | ALR-FS30-BZA | ALR-FS70-HDB | ALR-SPQ-GL / ALR-SPR-GL | ALR-PGR-RP / ALR-PGB-BP / ALR-PGH-HR |
| Glass Codes | ALR-GL-VSG88 / ALR-GL-VSG1010 route | ALR-GL-VSG1010 / ALR-GL-VSG1212 route | ALR-GL-VSG1212 / ALR-GL-VSG1515 route | ALR-GL-VSG66 / ALR-GL-VSG88 | ALR-GL-VSG66 / ALR-GL-VSG88 / ALR-GL-VSG1010 |
| Mounting Codes | ALR-MNT-TOP / YAN / KNR | ALR-MNT-TOP / YAN / GZL / KNR | ALR-MNT-TOP / YAN / GZL / KNR | ALR-MNT-TOP | — |
| Anchor Codes | ALR-ANC-M12-CHM / ALR-ANC-A4-SS | ALR-ANC-M16-CHM / ALR-ANC-A4-SS | ALR-ANC-M16-CHM / ALR-ANC-A4-SS | ALR-ANC-M12-CHM / ALR-ANC-A4-SS | ALR-ANC-M12-CHM / ALR-ANC-A4-SS |
| Adjustment Codes | ALR-ADJ-EPDM / KAMA / DREN | ALR-ADJ-EPDM / KAMA / DREN | ALR-ADJ-EPDM / KAMA / DREN | ALR-ADJ-EPDM | ALR-ADJ-EPDM |
| Glass Thickness | 8+8mm / 10+10mm VSG review route | 10+10mm / 12+12mm VSG review route | 12+12mm / 15+15mm VSG project route | 6+6mm / 8+8mm VSG review route | 2×8mm VSG route |
| Wind Load | 1.5 kPa review route | 3.0 kPa review route | 7.0 kPa review route | — | — |
| Recyclable | 98% | 98% | 98% | 98% | 98% |
| Certification | EN 1991-1-1 / EN 12150 / EN ISO 12543 review route | EN 1991-1-1 / EN 12150 / EN ISO 12543 review route | EN 1991-1-1 / EN 12150 / EN ISO 12543 review route | EN 12150 / EN ISO 12543 review route | EN 1991-1-1 / EN 12150 / EN ISO 12543 review route |
| Mounting | — | — | — | Square or round spigot on verified sill | Facade, sill or balcony edge review |
| Application | — | — | — | Private villa balcony | Urban residential balconies and service-balcony screens |
| Posts | — | — | — | — | Rear post, between-post or handrail-supported route |
| Profile Use | — | — | — | — | Horizontal service-balcony and air-conditioner balcony profiles |
